Clustering algorithm, runs on RAW data (HarpoMap), produces HarpoRecoClusters objects. More...

#include <HarpoClustering.h>

Public Member Functions
	HarpoClustering ()

void	Init ()

void	Save (char *mode=NULL)

void	process ()

void	FindCluster (HarpoDccMap *m, Int_t type, Int_t plane)
	Cluster finder. More...

void	print ()

void	SetThr (Double_t val)

void	SetNoiseThr (Double_t val)

void	SetCanvas (TVirtualPad c0, TVirtualPad c1)

void	SetHist (TH2F h0, TH2F h1)

void	DisplayAnalysis (TRootEmbeddedCanvas ecTab, TGListBox infobox)

void	Set (HarpoEvent *event)

virtual void	ProcessEvent (HarpoEvent *event)
	Set pointer to new event for analyse, anlyse event , and delete. More...

void	SetRunHeader (HarpoRunHeader *hdr)

TFile *	OpenHistFile (const char *ananame)

virtual void	ConfigFrame (TGMainFrame *, Int_t)

virtual void	SetConfig ()

Data Fields
HarpoEvent *	fEvt

Protected Attributes
ULong_t	nEvents

HarpoRunHeader *	fRunHeader

Private Attributes
Int_t	fBadCh [NALL]

Double_t	fThr

Double_t	fNoiseThr

Int_t	fNcl

Int_t	fNCcl

Int_t	fNTcl

Int_t	fTmin

Int_t	fTmax

Int_t	fXmin

Int_t	fXmax

Double_t	fXstart

Double_t	fTstart

Double_t	fQtot

TVirtualPad *	fCanvas [2]

TH2F *	fHist [2]

Detailed Description

Clustering algorithm, runs on RAW data (HarpoMap), produces HarpoRecoClusters objects.

Loops over the pixels in the map A cluster is defined as consecutive non-zero pixels with increasing and then decreasing value Algorithm:

If pix > fThr*noise, Start cluster
while pix[i]>pix[i-1] - fNoiseThr*noise fill cluster (up slope)
while pix[i]<pix[i-1] + fNoiseThr*noise fill cluster (down slope)
calculate COG, RMS, etc...

Definition at line 20 of file HarpoClustering.h.

Constructor & Destructor Documentation

HarpoClustering::HarpoClustering ( )

inline

Definition at line 24 of file HarpoClustering.h.

Member Function Documentation

virtual void HarpoAnalyse::ConfigFrame	(	TGMainFrame *	,
		Int_t
	)

inlinevirtualinherited

Reimplemented in HarpoMatching, HarpoHoughTracking, HarpoVertexing, HarpoMatchingVertex, HarpoAnalysePattern, HarpoAnalyseVertex3D, HarpoAnalyseVertex3Dsim, HarpoClusteringBlocs, HarpoAnalyseBertrand, HarpoAnalyseEtrack, HarpoAnalyseTemplate, HarpoSelectorVertex, HarpoAnalysePedestalShift, and HarpoEventSelector.

Definition at line 66 of file HarpoAnalyse.h.

Here is the caller graph for this function:

void HarpoClustering::DisplayAnalysis	(	TRootEmbeddedCanvas *	ecTab,
		TGListBox *	infobox
	)

virtual

Reimplemented from HarpoAnalyse.

Definition at line 387 of file HarpoClustering.cxx.

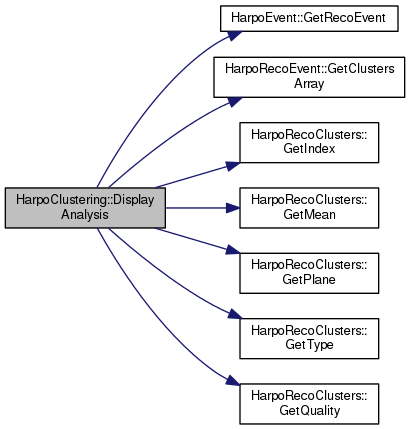

Here is the call graph for this function:

void HarpoClustering::FindCluster	(	HarpoDccMap *	m,
		Int_t	type,
		Int_t	plane
	)

Cluster finder.

Loops over the pixels in the map A cluster is defined as consecutive non-zero pixels with increasing and then decreasing value Algorithm:

If pix > fThr*noise, Start cluster
while pix[i]>pix[i-1] - fNoiseThr*noise fill cluster (up slope)
while pix[i]<pix[i-1] + fNoiseThr*noise fill cluster (down slope)
calculate COG, RMS, etc...

Definition at line 157 of file HarpoClustering.cxx.

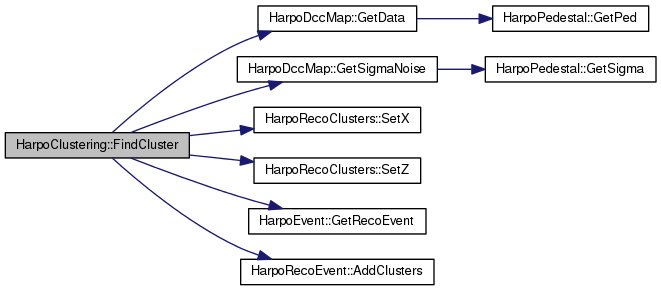

Here is the call graph for this function:

Here is the caller graph for this function:

void HarpoClustering::Init ( )

virtual

Reimplemented from HarpoAnalyse.

Definition at line 476 of file HarpoClustering.cxx.

Here is the call graph for this function:

TFile * HarpoAnalyse::OpenHistFile ( const char * ananame )

inherited

Definition at line 150 of file HarpoAnalyse.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

void HarpoClustering::print ( )

virtual

Reimplemented from HarpoAnalyse.

Definition at line 45 of file HarpoClustering.cxx.

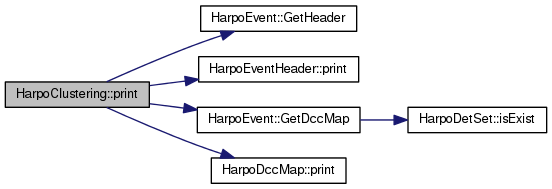

Here is the call graph for this function:

void HarpoClustering::process ( )

virtual

Implements HarpoAnalyse.

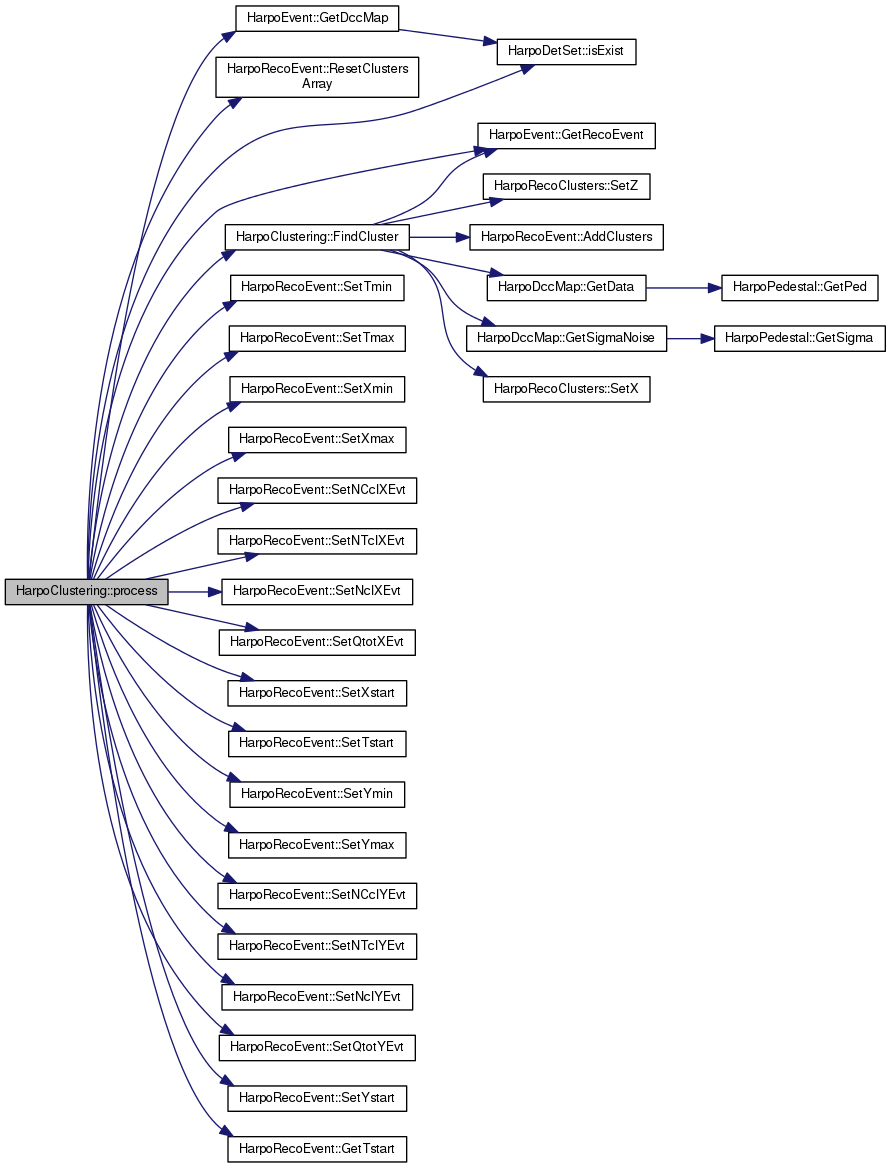

Definition at line 60 of file HarpoClustering.cxx.

Here is the call graph for this function:

void HarpoAnalyse::ProcessEvent ( HarpoEvent * event )

virtualinherited

Set pointer to new event for analyse, anlyse event , and delete.

Reimplemented in HarpoAnalyseWriter.

Definition at line 139 of file HarpoAnalyse.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

void HarpoClustering::Save ( char * mode = NULL )

virtual

Reimplemented from HarpoAnalyse.

Definition at line 511 of file HarpoClustering.cxx.

void HarpoAnalyse::Set ( HarpoEvent * event )

inherited

Definition at line 124 of file HarpoAnalyse.cxx.

Here is the caller graph for this function:

void HarpoClustering::SetCanvas	(	TVirtualPad *	c0,
		TVirtualPad *	c1
	)

inline

Definition at line 35 of file HarpoClustering.h.

virtual void HarpoAnalyse::SetConfig ( )

inlinevirtualinherited

Reimplemented in HarpoMatching, HarpoHoughTracking, HarpoVertexing, HarpoMatchingVertex, HarpoAnalysePattern, HarpoAnalyseVertex3D, HarpoAnalyseVertex3Dsim, HarpoClusteringBlocs, HarpoAnalyseBertrand, HarpoAnalyseEtrack, HarpoAnalyseTemplate, HarpoSelectorVertex, HarpoAnalysePedestalShift, and HarpoEventSelector.

Definition at line 67 of file HarpoAnalyse.h.

Here is the caller graph for this function:

void HarpoClustering::SetHist	(	TH2F *	h0,
		TH2F *	h1
	)

inline

Definition at line 36 of file HarpoClustering.h.

void HarpoClustering::SetNoiseThr ( Double_t val )

inline

Definition at line 33 of file HarpoClustering.h.

void HarpoAnalyse::SetRunHeader ( HarpoRunHeader * hdr )

inlineinherited

Definition at line 60 of file HarpoAnalyse.h.

Here is the caller graph for this function:

void HarpoClustering::SetThr ( Double_t val )

inline

Definition at line 32 of file HarpoClustering.h.

Field Documentation

Int_t HarpoClustering::fBadCh[NALL]

private

Definition at line 42 of file HarpoClustering.h.

TVirtualPad* HarpoClustering::fCanvas[2]

private

Definition at line 56 of file HarpoClustering.h.

HarpoEvent* HarpoAnalyse::fEvt

inherited

Definition at line 70 of file HarpoAnalyse.h.

TH2F* HarpoClustering::fHist[2]

private

Definition at line 57 of file HarpoClustering.h.

Int_t HarpoClustering::fNCcl

private

Definition at line 46 of file HarpoClustering.h.

Int_t HarpoClustering::fNcl

private

Definition at line 45 of file HarpoClustering.h.

Double_t HarpoClustering::fNoiseThr

private

Definition at line 44 of file HarpoClustering.h.

Int_t HarpoClustering::fNTcl

private

Definition at line 47 of file HarpoClustering.h.

Double_t HarpoClustering::fQtot

private

Definition at line 54 of file HarpoClustering.h.

HarpoRunHeader* HarpoAnalyse::fRunHeader

protectedinherited

Definition at line 76 of file HarpoAnalyse.h.

Double_t HarpoClustering::fThr

private

Definition at line 43 of file HarpoClustering.h.

Int_t HarpoClustering::fTmax

private

Definition at line 49 of file HarpoClustering.h.

Int_t HarpoClustering::fTmin

private

Definition at line 48 of file HarpoClustering.h.

Double_t HarpoClustering::fTstart

private

Definition at line 53 of file HarpoClustering.h.

Int_t HarpoClustering::fXmax

private

Definition at line 51 of file HarpoClustering.h.

Int_t HarpoClustering::fXmin

private

Definition at line 50 of file HarpoClustering.h.

Double_t HarpoClustering::fXstart

private

Definition at line 52 of file HarpoClustering.h.

ULong_t HarpoAnalyse::nEvents

protectedinherited

Definition at line 75 of file HarpoAnalyse.h.
