Wired Event Display: View LPA Data

This tutorial/Help page details how to launch the WIRED Event Display from the Data Catalog to view LPA data.

Note: WIRED can also be launched from the button beneath the 'Wired' tab on the LAT Data Portal web page.

Prerequisite

In order to run WIRED, the Java runtime environment (JRE) must be preinstalled on your machine. If it is not installed, you can download it from: www.java.com. (If EVO works, WIRED should work.)

Assumption

For this exercise, it is assumed that you want to look at eight events from run no. 249690314:

249690314 249690314 249690314 249690314 249690314 249690314 249690314 249690314

666471 1234117 3956058 4215957 4674934 6587419 9704948 1480318

Procedure

1. Select the Data Catalog tool.

Note: Default settings: Config: OnOrbit; Mode [Prod]

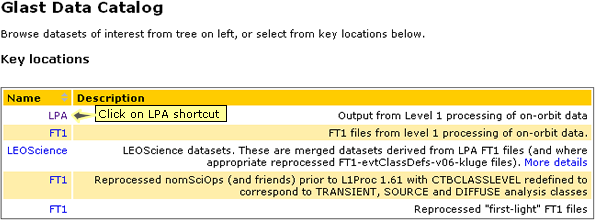

2. Click on the LPA shortcut:

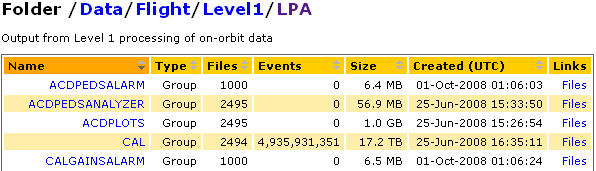

The Output from Level 1 processing of on-orbit data will be displayed:

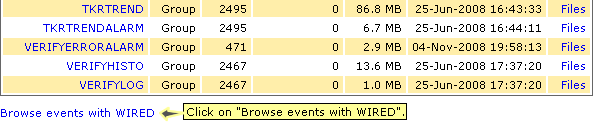

3. Scroll to the bottom of the list and click on Browse events with WIRED:

The following GUI will be displayed on your desktop:

4. Click OK to launch WIRED.

The following GUI will be displayed:

5. Enter your password.

The following GUI will be displayed.

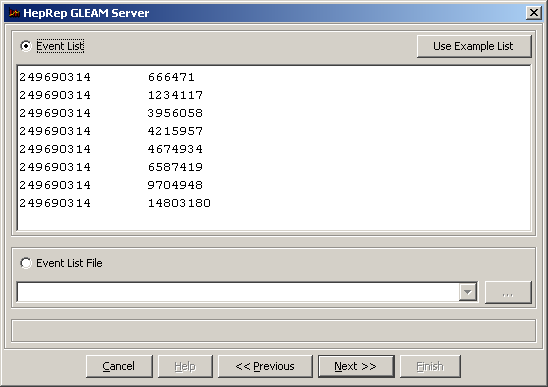

The HepRep event list will then be displayed:

Note: In the GUI shown above, you can paste a run number/event list in the field shown, or supply an Event List file.

Tip: To access the HepRep GLEAM Server GUI at any time, click on File --> Open Data Source:

6. Click on the Next>> button.

The following GUI will be displayed:

7. Click on the Finish button.

8. Click on the WIRED GUI's Go 1 button:

Allow up to ~1 minute for the first event to be displayed:

7. Click on the Go 1 button to view the event frame by frame.

8. In the Wired4 graphics window, right click to get the dropdown menu and select:

   Projections, then select the desired view.

Note: This selection will become the default view, the next time you access this tool.

9. To quit Wired4, click on: File --> Exit
