web007
There are a number of servers running on web007 used by Glast
IIS5
This runs with many virtual servers, mostly unrelated to glast. The ones relevant to glast are:
jira.slac.stanford.edu
confluence.slac.stanford.edu
These both simply forward requests to the relevant tomcat server (see below). IIS5 has so far never gone wrong, so there are no instructions for how to fix it.
MySQL
This is used as the database for jira and confluence, among other things. It has never gone wrong, so there are no instructions for how to fix it.
Tomcat5
There are two instances of tomcat5 running, one which runs jira and confluence, the other which runs miscellaneous services, currently SystemTests and Pipeline (experimental version).
| Service Name | Apache Tomcat | Apache Tomcat extra |
| CATALINA_HOME | D:\java\jakarta-tomcat-5.5.7 | D:\java\jakarta-tomcat-5.5.7 |
| CATALINA_BASE | D:\java\tomcat-base2 | D:\java\tomcat-base |
| JAVA_HOME | d:\java\jdk1.5.0 | d:\java\jdk1.5.0 |
| http port | 808 | 8888 |
| AJP13 port | 8009 | 8019 |

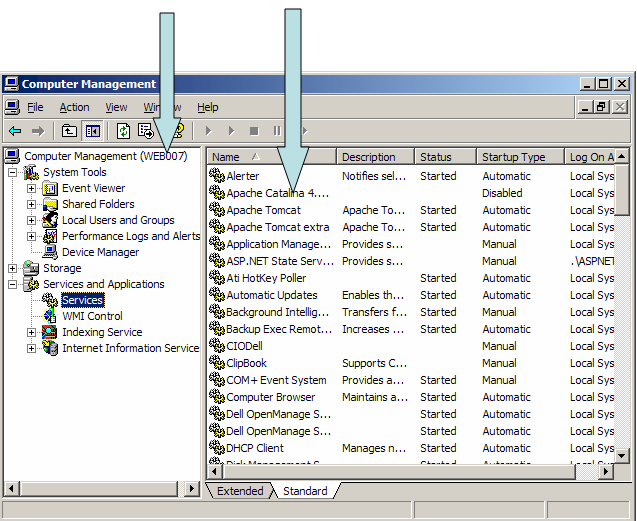

If either of these services fails the easiest way to fix them is via windows service manager. You can run service manager on any node at SLAC or connected via VPN, connect to web007, and use it to stop and restart the services. Currently Richard, Matt and Tony have admin access to perform this operation.
 | Warning Currently the tomcat server is experiencing some problems. Details are being tracked here |
Rebooting web007
In the extreme case that that the actual web server (web007) needs to be rebooted, please send an email notification to scs-windows-infrastructure@slac.stanford.edu and [softlist@glast.stanford.edu] to give people a heads up that you are rebooting the server. SCS monitors web007 and its services, and has requested that they be notified whenever the machine is rebooted.
