How to Fix FASTCopy Outgoing

Owned by: Philip Hart

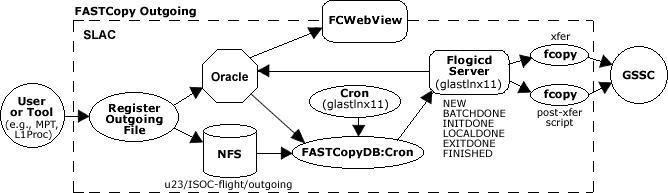

The FASTCopy Outgoing monitoring page shows the transfer process states ("new, batchdone, etc.; see diagram below); this is the first piece of information to use when diagnosing problems (e.g., the GSSC wants to know why some product has not yet arrived).

How to Fix
A file stuck in:

NEW (should not be there
more than 1 ~ 2 minutes.)
BATCHDONE
INITDONE
LOCALDONE
EXITDONE

Erroneous: SUCCESS ERROR
see Example:
Audit Trail for LISOC_2008136200914.tar

Notes:

Sender may, for example, be:
- L1 processing using FASTCopy.py to send the GSSC a data product.
- Mission Planning Tool (MPT), e.g., when the operator sends a planning product to the MOC, or to the GSSC.
  Note: The names of the MPT submitters must be in the FCOPY_SUBMITTERS table for the submittal
  to work.
  Note also: If the GSSC is down, the MPT can resend its products directly to the MOC.
- Someone runing FC_send.sh as a test. * A procedure is then invoked to tar the products, and the
  resulting tarball is copied to /nfs/farm/g/glast/u23/ISOC-.../glastops/Outgoing and entries are made
  in the Oracle FCOPY_OUTGOING and FCOPY_PKGINFO tables (the latter is a manifest of the contents).
The cron process on glastlnx11 runs FASTCopyDB::Cron() to send NEW tarballs to flogicd@glastlnx11 via fcopy -batch.
The daemon, which is a simple state machine, runs FASTCopyDB:Init(), fcopys the .tar to the destination, runs
the remote post-transfer code, runs Local() to do local cleanup, then exits.
Script installations and rpms are as in the incoming section.

1. File stuck in "NEW"

To Test: Check FASTCopy Outgoing. If the file has been stuck in the "NEW" state for more that 1~2 minutes, there's probably a problem with the cron process on glastlnx11.

To Fix: Check Nagios to ensure that glastlnx11 is okay. If it is not, call xHELP at (650) 926-4357. You will get the Help menu. Select "page the on-call Technical Coordinator" who will try to assist, or will contact a member of the Infrastructure Group as needed.

Tip: If glastlnx11 is okay, connect to glastlnx11; then check /var/log/flightops/cron.log for python exceptions, or whatever.

2. File stuck in "BATCHDONE"

Note: There is probably a problem with the flogicd daemon on glastlnx11. This function is not serviced by the usual FOS daemons infrastructure described in the confluence Daemons and daemon control pages.

To Test: See if flogicd is running on glastlnx11. [E.g., ssh to glastlnx11, then see if flogicd is running under root by doing ps aux | grep flogicd. Or do service --status-all | grep flogicd.]

To Fix: If necessary, run /sbin/service start flogicd. [This can be done as glastops or via sudo, requiring a level of permissions that may require calling an expert.]

Note: At this point, the local tarball still exists, so you can reset the FCOPY_OUTGOING table entry to NEW in the same way described in the How to Fix FASTCopy Incoming: Ingest Faliure

For example, the tarball initially lives in:

/nfs/farm/g/glast/u23/ISOC/glastops/Outgoing/B33_2008054211250.tar
and gets moved by the FASTcopyDB::init() [maybe local()?] method to:
/nfs/farm/g/glast/u23/ISOC/Archive/fcopy/2008/02/054.02.23.Sat/utc21/21.19.34/B33_2008054211250.tar

To Test: Launch FASTCopy Monitoring (FCWebView), select Outgoing and check the Status column.
If there is package stuck in "BATCHDONE", and you need to reset the "submitted" flag to "new", so the cron job
will pick it up and resubmit the job*.*
- First, hover over the Package name of the failed package.
- From the status bar at the bottom of the page, copy the the icdfile_pk number
  (e.g., icdfile_pk=63677).
From an ISOC environment terminal, you can access the relevant Oracle instance via a wrapper, e.g.,

       rlwrap sqlplus /@isocnightly
or:
       ... flight

Note: For others, see_: $TNS_ADMIN/tnsnames.ora*_*

Tip: It may be useful to inspect:
       desc fcopy_icdfile
       select * from fcopy_jobstate*

To Fix:
To change the table status, run:

update fcopy_icdfile set jobstate_fk = 1 where icdfile_pk in (1234, 234, 545)
Or, to reingest an entire tarball:

... where icdfile pk = 123456789

3. File stuck in "INITDONE"

There is probably some network issue or problem with the fcopyd at the destination.
To Fix: Contact the destination or SLAC computing.

4. File stuck in "LOCALDONE"

There is a problem with the remote post-transfer process.
Check the log in: /nfs/farm/g/glast/u23/ISOC-flight/glastOps/Outgoing/

5. File stuck in "EXITDONE"

Note: The file is not expected to be in EXITDONE. At this stage, flogicd will handle problems by closing the transfer record and starting a new one, which will be duly noted in the central log.

Audit Trail for LISOC_2008136200914.tar

When you click on a link in FASTCopy Monitoring: Outgoing to a successfully "fcopyed" file (e.g., LISOC_2008136200914.tar), you will see a "SUCCESS ERROR" message as shown below. Ignore the "ERROR" part of the message, which is just fastcopy annoyingness.

.....

COMPLETED JOBS *******
Famil Paren Job Id Node State Fcopy User Group Pr
-------------------------------------------------------------------------------
00003 00000 00003 fcopy batch glyph.gsfc DONE -1 glasto users
Thu May 15 13:10:06 2008:*Issuing (synchronous) Init Command: flogic_init.sh 64195 glyph.gsfc.nasa.gov LISOC_2008136200914.tar
Thu May 15 13:10:10 2008: Init Command completed successfully
Thu May 15 13:10:10 2008:*FASTCopying...
Thu May 15 13:12:06 2008: FCOPY Batch job is successfully done!
Thu May 15 13:12:06 2008:*Issuing (asynchronous) Exit Command: flogic_exit.sh 64195 glyph.gsfc.nasa.gov LISOC_2008136200914.tar 1 SUCCESS ERROR
